Products Details

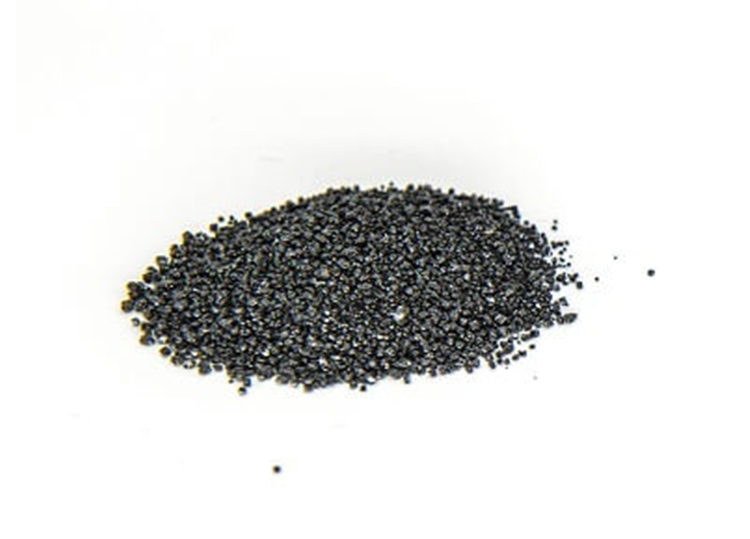

Foundry Grade
Foundry grade chromite sand is used for its unique properties, high thermal conductivity, heat resistant, low heat dilating and a cost-effective way to produce and use in some of the below applications:
- - Quality Castings
- - Specially Treated Moulds
- - Automotive Castings
- - Alloys such as Stainless Steel
- - Metal Casting
- - Chrome Plating
- - Metal Ceramics
- - Used to Produce Synthetic Rubies
- - As a Catalyst in Dyeing and in the Tanning of Leather
- - To make Moulds for the Firing of Bricks
FOUNDRY GRADE CHROMITE SAND CURRENTLY ON OFFER IS COMPRISED OF THE BELOW SPECIFICATIONS:
- - Cr2O3 min. 46.0%
- - SiO2 max. 1.0%
- - CaO max. 0.3%
- - Excellent Sizing (With Low Fines and No Dust)
- - Excellent pH Values (Close to Neutral)
- - Low Acid Demand Values
- - High Refractoriness
- - Thermal Conductivity
OUR FOUNDRY GRADE CHROMITE SAND IS AVAI ABLE IN BELOW SIZES:
- - AFS 40 - 45
- - AFS 45 - 50
- - AFS 50 to 55
- - AFS 55 to 60
REFRACTORY GRADE
Chromite Sand Refractory Grade mainly used in chrome-magnesia, casting sands in cores and moulds in steel, iron foundries and base material in sliding gate mixes or plugging sands in ladles at steelworks.
Refractory Grade Chrome ore is able to overcome the typical disadvantages of magnesia (shrinking tendency and high temperature coefficient). The high chromium content of typical 48% Cr2O3 and low silica of typical 0,9% SiO2, coarse sizing and high Cr:Fe ratio of close to 2:1 makes our refractory grade being appreciated world-wide.
REFRACTORY GRADE CHROMITE SAND CURRENTLY ON OFFER IS COMPRISED OF THE BELOW SPECIFICATIONS:
- - Cr2O3 Min 46%
- - SiO2 max 1%
- - High Refractoriness
- - High Thermal Conductivity
- - Coarse Sizing, Varying from AFS 25 to 30
- - AFS 30 to 35
- - AFS 35 to 40
CHEMICAL GRADE
CHEMICAL GRADE : CHEMICAL GRADE CHROMITE SAND CAN BE USED FOR THE FOLLOWING APPLICATIONS:
- - Metal Finishing
- - Wood Preservatives
- - Leather Tanning
- - Paints
- - Coloured Glass
- - Ceramic Glazes
CHEMICAL GRADE CHROMITE SAND CURRENTLY ON OFFER IS COMPRISED OF THE BELOW SPECIFICATIONS:
- - Cr2O3 - Min 44% or Min 46%
- - SiO2 - Max 1.2% or Max 1%
- - Wet or Dry Sizing – Typ. 95 % < 1.0mm
METALLURGICAL GRADE
Metallurgical Grade Chromite is mainly used as a base material for Ferro Chrome production.
METALLURGICAL GRADE CHROMITE CURRENTLY ON OFFER IS COMPRISED OF THE BELOW SPECIFICATIONS:
- - Cr2O3 Ranging from 35% to 45%
- - SiO2 Ranging from 2% to 12%
- - Wet or Dry
- - Sizing Ranging from Concentrate (0 – 1 mm) to ‘0 – 10 mm’ to
- - lumpy (10 – 150 mm)
FOUNDRY GRADE CHROMITE SAND CURRENTLY ON OFFER IS COMPRISED OF THE BELOW SPECIFICATIONS:
- - Cr2O3 min. 46.0%
- - SiO2 max. 1.0%
- - CaO max. 0.3%
- - Excellent Sizing (With Low Fines and No Dust)
- - Excellent pH Values (Close to Neutral)
- - Low Acid Demand Values
- - High Refractoriness
- - Thermal Conductivity
OUR FOUNDRY GRADE CHROMITE SAND IS AVAI ABLE IN BELOW SIZES:
- - AFS 40 - 45
- - AFS 45 - 50
- - AFS 50 to 55
- - AFS 55 to 60
